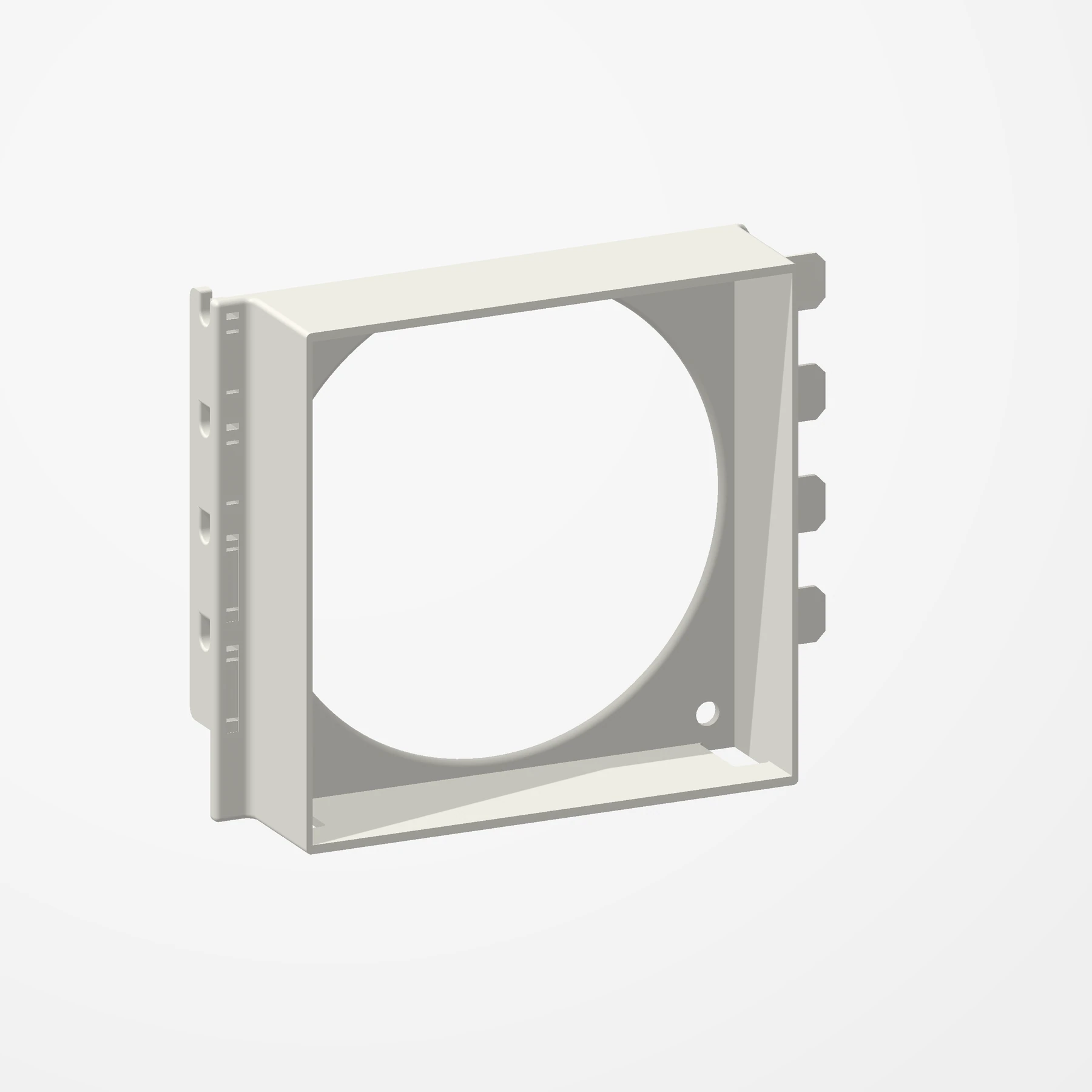

High-Profile 92 mm PCIe Fan Mount

Position a 92 mm fan near your graphics card to direct airflow where it is needed. Takes up 4½ PCIe slot positions. Fans are not included.

COMING SOON TO ETSY

Ask about this design

7-step setup guide

First made at a customer's request for a Noctua NF-A9. Takes up 4½ expansion-slot positions and is secured with 4 case screws. Check fan thickness and clearance around the GPU. Preview airflow is illustrative.

Manufactured from premium PETG-HF for thermal resistance and structural durability.

Why it’s designed this way

The design puts a dedicated 92 mm fan near the space beneath the graphics card, where a case may not provide a convenient mounting point. It was first made at a customer's request for a Noctua NF-A9. Larger does not automatically mean better cooling.

Before you order

Fan configuration: 1 × 92 mm. Fans are not included.
Takes up 4½ expansion-slot positions and is secured with 4 case screws.
High-profile bracket; check the case opening.
Measure fan thickness and the full assembly clearance beneath the GPU and around nearby cards/cables. Compare with the listing dimensions.

Setup & use

Step 1
Choose intake or exhaust
Decide which way the fan will blow: exhaust pushes warm air out through the back of the case, intake draws cool air in toward the graphics card above.
Step 2
Seat the fan
Place the 92 mm fan into the box with the frame arrow pointing the way you chose. A fan is not included.
Step 3
Screw it in from the bracket side
From the bracket side, fix the fan through the four corner holes with the screws (or rubber mounts) that came with the fan. No screws are included.
Step 4
Route the cable
Lead each fan cable out through a side pass-through so it stays clear of the blades.
Step 5
Remove the slot covers
Shut down and unplug the PC. Remove the case screws and the slot covers below the graphics card: the mount takes up 4½ slot positions. Keep the screws.
Step 6
Fit it like a card
Slide the mount into the free slots the same way as an expansion card and secure it with the case screws you removed. It takes 4 of them.
Step 7
Connect and check
Connect the fan to a fan header following its manufacturer’s instructions, check the blades turn freely and nothing touches the graphics card, then power on.

Drawn from the product’s 3D models. Cases, desks, devices and other surroundings are illustrative; drawings are not measured plans.

Care & troubleshooting

Wipe with a soft, slightly damp cloth, then dry. Avoid solvents and hot-water cleaning. If you notice vibration or contact, power down and recheck mounting and cable routing.

Open this guide in Help

From the Workbench

All stories

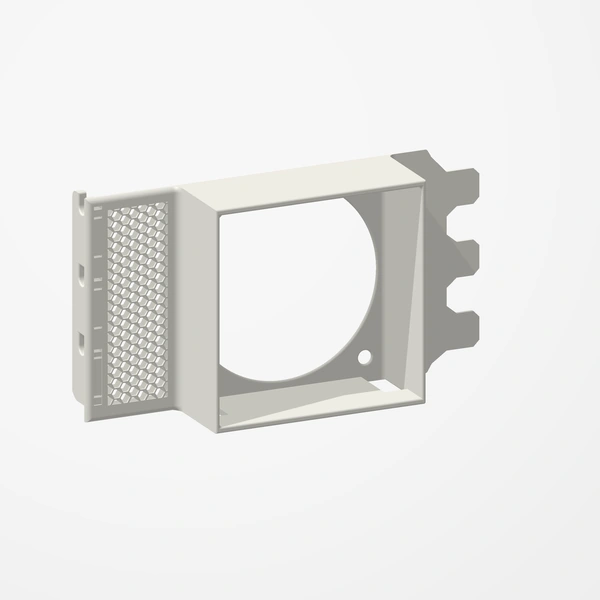

This design beside another PCIe fan mount. Renders are framed individually, not shown at a common scale. Fans are not included.
